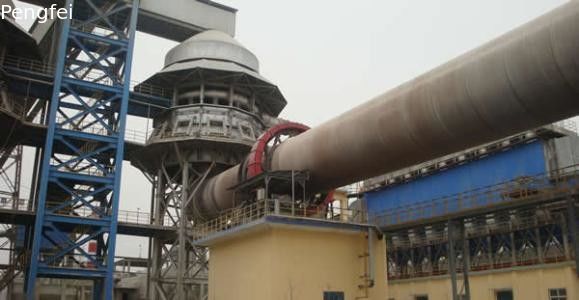

600tpd Quick Active Lime Production Line
For the quick lime plant,I want to introduce you the application of the quick lime in different industry, if you or your friends who have the limestone, you can try to think about to invest one lime plant.the lime plant can be from 100tpd to 1200tpd.the lime can be used in the following filed:
The main equipment of lime plant
No. | Main Equipment name |
1 | Crusher |
2 | Preheater |
3 | Rotary kiln |
4 | Vertical cooler |
The main products of Pengfei Group
Rotary kiln system, grinding equipment and cement production line.
Rotary kiln system mainly includes rotary kiln, preheater, dryer, cooler and rotary kiln control system;
The grinding equipment system mainly includes tube mill (including ball mill and coal mill), roller press, vertical mill, separator and grinding equipment control system;
Cement production line: Including 1 000 t/d, 2 500 t/d, 3 000 t/d, 5 000 t/d cement production lines and EP/EPC engineering general contracting services of various grinding production lines with annual output of 100,000 tons, 300,000 tons, 500,000 tons, 1 million tons and 2 million tons.
The quick lime can be also the raw material to produce the hydrated lime,PPC.we can also provide hydrated lime plant and PPC plant.
For the raw materials. limestone is the only material, no other material shall be mixed. The Cao content of the limestone shall be more than 50%, higher content higher quality.
For the fules you can choose coal,heavy oil, natural gas or any other kinds of woods or fuels have higher heat value, And the vertical kiln shall adopt blind coal which the voltile shall be less than 10%, if the voltile is higher ,it will make the vertical kiln to be bombed. If you do not have the blind coal, like you have the natural gas or heavy oil,I do not suggest that you use vertical kiln, because the investment for vertical kiln adopt natural gas or heavy fuel is normally same price like a rotary kiln system.of course there are also other fuels,like woods ,we have built one in Malaysia who use the woods as the fuel,but the woods shall have higher heavy value.
For the raw materials The limestone from the quarry shall be less than 1 meters and after crushing the qualifed limestone shall be around 20mm-45mm to enter into rotary kiln system, the inlet size of the limestone entering into vertical kiln can be 40mm-80mm.
Quick lime plant qualifed limestone
Limestone 25~40mm 15~25mm |
CaO(%) | MgO(%) | SiO2(%) | P(%) | S(%) |
≥53 | ≤2.5 | ≤1.5 | ≤0.01 | ≤0.06 |
