PCX Series super-finess energy saving crusher is a world level crusher developed from the up-to the minute technology of germany.after improving and comibning the advantages.we design the machine,the series feature of rational multi crushing chambers and novel double adjusting mechanism,which can ensure 85% of the discharged materials less than 3mm,and the uniformity of the product finess can be controlled.
Introduction of our company
Jiangsu Pengfei Group Co., Ltd. is a large leading enterprise in building material industry. Our company is a manufacturing and exporting base of cement machinery and equipment. Our company mainly produces comprehensive sets of rotary kilns, ball mills and cement machinery for new type dry process cement plant with capacities of 10,000tpd, 8,000tpd, 5,000tpd, 4,000tpd, 3,000tpd and 2,500tpd, as well as machinery for mining, metallurgy, chemical, electric power and environment protection industries.Our company pursues high quality and enterprise reputation. We cooperate with various academies from all over the country, and constantly explore and develop new techniques and products. 12 of our products have passed the evaluation of Ministry & Provincial certifications. Furthermore, 6 of our products are awarded an honor of "National New Products" and 5 products have attained the Ministry & Provincial Good Quality Certification, as well as 22 patents, 4 high and new technical certifications. Our company has many kinds of large machining equipment with strong machining capacities of 150,000MT/y to satisfy the requirements of rotary kilns and ball mill below 6 meters. Our equipment includes 8-meter hobbing machines, 8-meter vertical lathes, 5-meter vertical lathes, 6.3m*20m face lathes and 6.5-meter annealing furnaces. After 40 years' development, our company has formed production service from design, manufacture, installation to debugging. We supply 4.3*64m rotary kilns and 3.8*13m ball mills for Pakistan Lucky Cement Factory, two comprehensive sets of cement production lines for Myanmar Dragon Cement Factory, 5*74m rotary kilns and 3.8m wind swept coal mills of four cement production lines for National Industry Cement Co., Ltd. and Guangdong Taini (Yingde) Cement Co., Ltd, two 4.2*13m ball mills for Inner Mongolia Baotou Steel & Iron Factory and 4.0*60m rotary kilns and 4.6*13m ball mills of 2,500tpd cement production line for Vietnam Caesar Cement Factory. Our products sell well not only all through our country, but also in Russia, Japan, Korea, Southeast Asia, South America and Middle Africa. Our board chairman and general manager, Mr. Jia'an Wang, warmly welcomes all overseas experts, colleagues and friends to visit our company, and cooperate with us.
The specification of PCX Crusher
| Model | Motor power(kW) | Max inlet size(mm) |
| PCX-8040 | 37 | 80 |
| PC-8080 | 45 | 80 |
| PCX-9080 | 55 | 100 |
| PCX-9010 | 75 | 100 |
| PCX-1010 | 90 | 150 |
| PCX-1210 | 110 | 200 |
| PCX-1212 | 132 | 200 |
Workshop

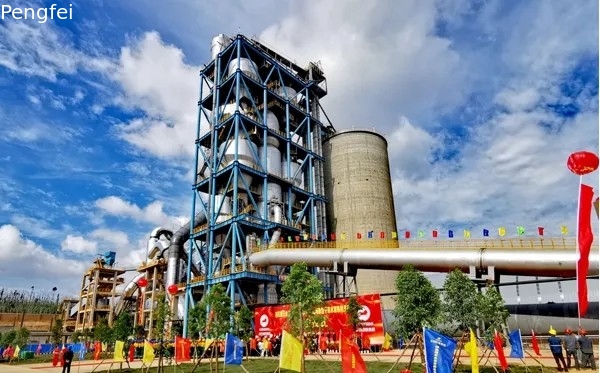

The technical parameter of 1500tpd cement production line
Brief Introduction of Jiangsu Pengfei Group Co., Ltd.
Location advantage: Jiangsu Pengfei Group Co., Ltd. is located in Nantong City which is in the north of Yangtze River delta economic metropolitan area. It connects Yellow Sea in the east and looks south to the Yangtze River. The company is the national famous building material machinery manufacturing and transporting base. The goods will be shipped to focus all over the world by the million tons of seagoing vessel will through the international Nantong Port and Shanghai Port. Ningqi Railway and Xinchang Railway connect here, and at the same time the coastal Highway and Haili Highway also link here. Because of its special harbor location advantages and manufacturing capacity, Pengfei Group has become the largest cement equipment manufacturing and exporting base in our national coastal areas.
Scope of business: The company has the great comprehensive ability to provide best quality services on turn-key basis with technology design, complete plant, erection and debugging, commissioning for the 10000t /d rotary kiln cement production enterprise. It can also undertake various projects abroad international bidding projects. It supplies complete equipments and technical services of grinding, calcination, crushing, dust collecting, conveying and lifting for the metallurgy, the chemical industry, the electrical power, the mine, the environmental protection enterprises, etc.
Market position:The total amount in the cement machinery industry is second rank among the same business, and first in Jiangsu Province. The products have been exported to Germany, Russia, Brazil, Egypt, Ira, Bangladesh, Pakistan, Turnkey, Myanmar, Vietnam, Columbia, Bolivia, South America, etc.
Company instruction: Jiangsu Pengfei Group mainly engages in the design, manufacturing, selling of complete set of equipment for the building material machinery, the environmental protection machinery, the metallurgical machinery and the chemical machinery industry, supplying the complete set of machinery and electrical equipment, installation and debugging, as well as contracting the turn-key basis project and the relevant technical service.The company has won the titles of Chinese leading enterprise in cement machinery industry, Jiangsu Credible and Trustworthy Enterprise and Jiangsu AAA grade credit enterprise. Its leading products have got Chinese famous brand products titles and “Pengfei” trademark also has been awarded “China Famous Trademark”. The company covers an area of 350,000m2 and it has 0.82 billion RMB of total assets. There are 450 engineers and technicians. The company has the six subsidiary companies such as the mechanical plant, electronic plant, casting plant, installation plant, the new type building materials plant, etc.The company has the mechanical processing capacity of 300,000t/y; its rotary diameter and gear hobbing diameter are 10m as well as the diameter of the annealing furnace is 6.5m; the maximum hoisting capacity is 400t, own CK52130x50/260(φ13m)vertical lathe,DVT1000x40/200(φ10m)vertical lathe,W11-120X3200(120mm thick 3200mm wide)steel plate rolling machine, C6070x21(φ7m,21m length)shell lathe, C6070x25(φ7m,25m length) shell lathe,C6070x15(φ7m,15m)shell lathe andφ7mx21m annealing furnace and etc. so the company can meet the manufacturing requirements of the rotary kiln and ball mill below φ6m. The large-sized pre-heater, rotary kiln, tube mill, vertical mill, cooler and other main machinery is completely researched, developed and manufactured by Pengfei Group itself. The company has assumed the dual role of supplier for the turn-key services and supplier for main equipments. After obtaining signing right and management qualifications of foreign project-contracting, Jiangsu Pengfei Group Co., Ltd actively develops the international business of project contracting, contracts construction and installation project as well as international bid project of cement, metallurgy, chemical machinery and equipment , at the same time dispatches the needed labors that the above mentioned foreign projects needed. Pengfei Group completed to manufacturing the main machines of Pakistan PLC 3000t/d cement production line for Hefei Cement Research & Design Institute successfully, and then got the business to manufacturing the main machines for Pakistan PLD, PLE and PLF Production Line. The company has taken on the complete project of eight cement production lines like Myanmar Thayet, Dragon, Triple A, King Elephant and Tiger Head Cement Plant, as well as the business to manufacturing the rotary kiln and cement mill for two 2500t/d cement production lines of Vietnam Kaisa Cement Plant. Pengfei Group has contracted the complete set of 1500t/d cement production line with Africa Rwanda company, and the project includes the process from the limestone crushing to the finished cement products, the electrical automation design, the equipments for the whole factory as well as the services of installation & debugging, personnel training, etc. At the same time the company implements the turn-key basis project of 2500t/d cement production line for Russia Volga Cement Plant.
Our board chairman and general manager, Mr. Wang Jia’an, warmly welcome all the overseas experts, colleagues and friends to come to our company, and survey and discuss about cooperation business and make great future together
1.General Condition
Trans-century new grinding equipment.Model PMG series High effcient ball mill has been designed with the merits of open circuit grindign system and importan renovations on traditional ball mills. besides they have all the good advantages of open circuit mills ,production capacity has been raised substantially,product becomes super fine and blains have been increased.it has providied a new type of grindign equipment for producing high strength grade cement with high output and super finess.
Model PMG ball mill has adopted special intergrate diaphgragm and discharge grate to adjust material levels of every chamber so as to increase air ventilation and improve conditions inside mill;meanwhile it has also used new type of lining plate,regulated mill rotation speed,optimized design of pinion&girth gear and lubricating parameters of bearings so as to increase its oeprational stability,use life and grinding efficiency.
After being put into pratice,it is proved that its output has been increased about 20% and unit product power consumption has been reduced 10%-12% down under the conditions that other parameters have not been changed by comparison to other same sized ball mill.while being opreated in open circuit,specific surface of cement could be reached up to 320cm/kg performance of it is up to national advanced standard.it has been awarded as well known brand product of China building material machinery Industry,"Well know brand product of Jiangsu Province,state star plan products"Appointed Manufacture of Naitonal Building Material Machinery industry"etc.
2.The techncial parameter
2.1The grinding media loading is 100t
2.2The drive type is center drive
2.3 the speed is 19r/min
2.5the cement finess is 300m2/kg
2.6The equipment weight is 200t
3.The material of main part,
Shell :Q235B, Inlet and outle hollow shaft:ZG230-450,the sprial shell at inlet and outlet:Q235-A,The liner:ZGMn13Cr
Our products are sold all over the world, you can rest assured.
