300tpd Wet dry Type Vertical Kiln Cement Production Line

Basic Information
Place of Origin: Jiangsu
Brand Name: Pengfei
Certification: CE,ISO
Model Number: 1000tpd
Minimum Order Quantity: 1 set
Price: USD8000000-USD16000000
Packaging Details: All the packing is suitable for the ocean transporting and inland transporting,1.The kiln shell is transported in 6 sections. 2.The supports is packed on the cushion.3. the small parts is packed in wooden box and iron frame.4.there will be shipping mark on
Delivery Time: 360 days
Payment Terms: L/C, T/T
Supply Ability: 1 SET PER 360 DAYS
Process: Dry Process And Wet Process Capacity: 1000tpd
Automatic Level: Completely Automatically Voltage: 380V,10kV,6.6kV,11kV
Weight: As Per Process Workign Days: 330 Days
Working Hours: 24 Hours Color: As Per Your Requirements
Kiln Type: Vertical Kiln/rotary Kiln
High Light:

300tpd Cement Production Line

,

Vertical Kiln Cement Production Line

,

300tpd Cement Factory Machine

                                                WELCOME TO JIANGSU PENGFEI GROUP CO.,LTD



300tpd Wet Dry Type Vertical Kiln Cement Production Line



One Belt and One Road



Pengfei group has built more than 100 cement production lines and its products were exported to more than 70 countries where pengfei also offered one-stop solutions, including engineering design, civil engineering, equipment package, installation and commissioning, and production service such as Bangladesh, Kazakhstan, Turkey, Uzbekistan, etc.



The main equipment for raw mill



Name Model and specifications
Crushing of limestone

Heavy apron feeder

Model: WB1600×10000mm

Capacity: 60~180t/h

Motor power: 22kW



One-step hammer-type crusher

Model: PCF1616

Production capacity: 180t/h

Feeding granularity: ≤600×600×900mm

Discharging granularity: ≤25 mm

Motor power: 315kW

Crushing of sandstone

Jaw crusher

Specification: PEX-250×1000

Production capacity: 20t/h

Feeding granularity: ≤210mm

Discharging granularity: 25mm

Motor power: 37kW

Crushing of clay

NPG impact clay crusherNPG: Φ1000×1000

Production capacity: 60~90t/h

Feeding granularity: 400mm

Discharging granularity: ≤30

Material moisture: ≤20%

Motor power: 45kW×2

Crushing of raw coal

Jaw crusher

Specification: PEX-250×1000

Production capacity: 30t/h

Feeding granularity: ≤210mm

Discharging granularity: 25mm

Motor power: 37kW

Process description

(1) Limestone crushing and transportation

After limestone is conveyed from mine to plant, if crusher is switched on, LS will be directly unloaded to receiving pit, and then by heavy duty apron feeder sent to single hammer crusher PCF1616 to be crushed, if crusher is switched off, LS will be unloaded to open-air stockpile, and then sent to receiving bin via loader for crushing.

The crushed limestone is sent to two limestone dosing silos (dia.Φ12m) by belt conveyer, elevator and tee valve.

(2) Auxiliary material crushing and conveying

When the exclusive receiving pit is free, clay is unloaded directly to the pit, and then sent to clay proportioning silo via apron feeder, tooth crusher, belt conveyer and elevator. When the receiving pit is full, clay will be firstly stacked at shed, and then conveyed by forklift to receiving pit when it is free, at last, it is conveyed to clay proportioning silo by apron feeder, crusher, belt conveyer and clay proportioning silo.

When the exclusive receiving pit is free, iron ore and sandstone is unloaded directly to the pit, and then sent to respective proportioning silo via raw crusher, elevator. When the receiving pit is full, they will be firstly stacked at shed, and then conveyed by forklift to receiving pit when it is free, at last, it is conveyed to respective proportioning silo by crusher and elevator.

(3) Coal homogenization

Raw coal is unloaded directly to the pit after coming into plant, and then sent to raw coal preblending stockpile via apron feeder, belt conveyer, elevator and belt conveyer with discharging trolley, or firstly unloaded to open-air stockpile, and then conveyed by forklift to receiving pit subject to inform, at last, it is conveyed to raw coal preblending stockpile through apron feeder, belt conveyer, elevator and belt conveyer with discharging trolley. The blended raw coal is sent to raw coal bin through forklift and belt conveyer.

(4) Raw material proportioning silo and conveying

Raw material proportioning silo is composed of two concrete silos and three steel slab bins, and be measured by variable speed belt scale. Limestone silo consists of two Φ12m concrete silos, used for storage and proportioning. The proportioning bins is Φ6m,Φ6m and Φ6m respectively for clay, sandstone and iron ore.

(5) Raw mill & waste gas treatment at kiln inlet

Proportioned raw material will be fed onto the air swept drying mill with size of Φ3.8×8.6m. In the process of rotating, raw meal will be raised by material raising device in the raw mill and sufficiently contact with hot gas from high-temperature fan at kiln inlet. By this means, raw meal will be dried. Dry raw meal is ground in the mill. Then the raw meal will fed onto high efficiency separator. Fine powder will be fed onto the raw meal-homogenizing silo via electric flap valve and air slide while coarse powder returned to the mill via electric flap valve and air slide. Hot gas from preheater goes through humidification tower and high-temperature fan and then divides into two parts, one part goes directly to electric dust collector, and the other part goes to raw mill head, and then 1/8 of this part goes to mill end. Waste gas out of mill firstly goes through high efficiency separator and raw mill fan (with inlet regulation valve), and joins the waste gas to the electric dust collector. After that, the waste gas will be purified by the electric dust collector and drained to the air.

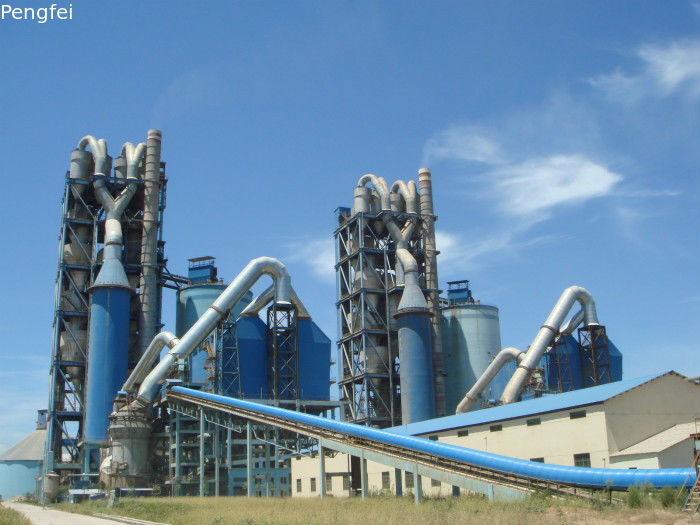

Main equipment photos

300tpd Wet dry Type Vertical Kiln Cement Production Line 0



After-sales service

Implementing the concept of pre-sale, in-sale and after-sale service:

1 Pre sale service:

Introducing products and related processes to users,Production Line Scheme and Technical Advantage,Providing pre-project technical advisory services,Customized Production Line Technical Solution for Customers.

2 Sale service:Manufacture excellent products for users,Provide customers with confidence in product quality.

Test:Strengthening Process Inspection and Intermediate Control,Strict Inspection System,Guarantee product quality,Providing quality products.

Train:Arrange experienced engineering technicians for training and guidance

install:Delegate engineers and technicians with experience in installation and commissioning to the site for installation and commissioning guidance,After customer acceptance is satisfactory,Qualified user opinion reports must be obtained.

3 After-sale service:

Regular guidance to users for product maintenance and maintenance,Free guidance for user installation,commissioning and product maintenance.Upon receipt of user failure handling requirements,Give maintenance advice within 24 hours.

Customer satisfaction is our constant pursuit, Always put the interests of customers first.

5.Certificate

300tpd Wet dry Type Vertical Kiln Cement Production Line 1

300tpd Wet dry Type Vertical Kiln Cement Production Line 2

300tpd Wet dry Type Vertical Kiln Cement Production Line 3
