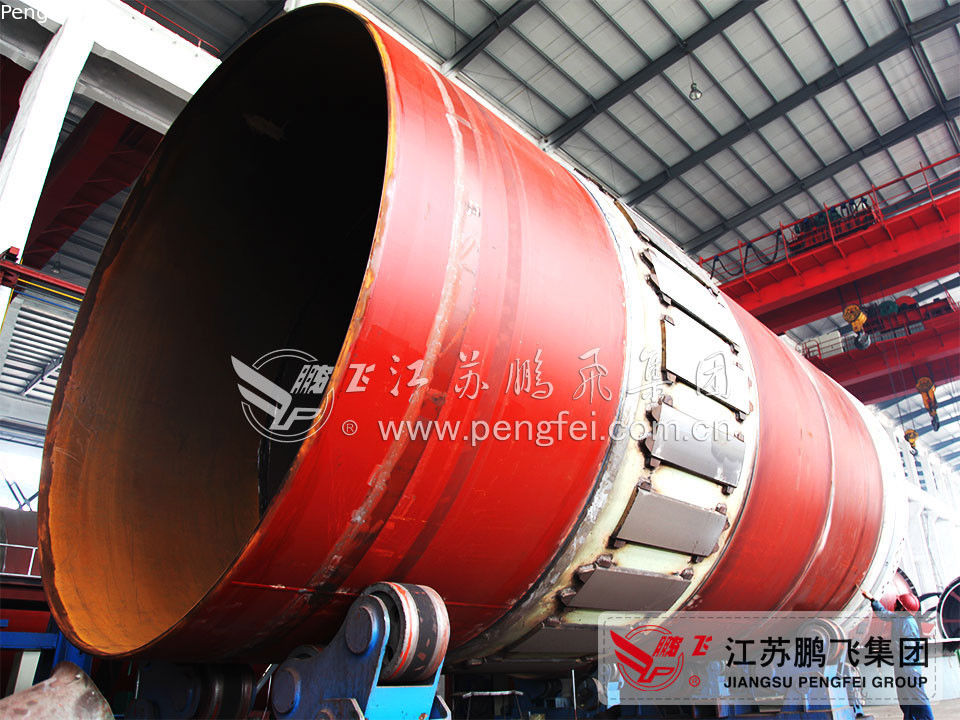

Φ4.6 100m 6000tpd Pengfei Metallurgy Rotary Kiln
The structure of rotary kiln
The Kiln consists of kiln shell,supporting unit,hydraulic thrust rollers. drive unit,kiln inlet and outlet sealing unit,so please see the video of the rotary kiln.
We can design as per your requirements if you provide us the capacity or the size, we will calculate and choose one right type for you. The rotary kiln must be in good quality,because the rotary kiln shall be running for 24 hours. And once stop, it need three days to restart, time is money, So please choose Pengfei, because we have long history and much more experience on manufacturing and improving the rotary kiln.
Please see the video to know more about our company.
| Application | Quick lime plant | ||
| Equipment name | Ф3.2×50m rotary kiln | ||
| 1. | Technical parameter | ||
| Capacity | t/h | 300tpd | |
| Slope | % | 3.5 | |
| Supporting No. | 2pier | ||
| Speed | |||
| Main speed | r/min | 0.3～3.0 | |
| Drive type | Single drive | ||
| Main drive motor | |||
| Type(VFD Motor) | ZSN4-280-091B | ||
| Power | kW | 110kW | |
| Rated speed | r/min | 1000 | |
| Armature voltage | 440V | ||
| Exciting voltage | 180V | ||
| Speed adjusting range | r/min | 100-1000 | |
| Protection grade | IP54 | ||
| Auxiliary motor | |||
| Type: | Y160M-4B | ||
| Power | kW | 11 | |
| Rated speed | r/min | 1460r/min | |
| Rated voltage | V | 110V | |
| Rated speed | r/min | 0-2000r/min | |
| Auxiliary gear box | |||
| Type | ZSY160-31.5 | ||
| Rated power | |||
| Main drive gear box | |||
| Type | YNS1110-63VIBL | ||
| Total center distance | 1110 | ||
| Total nominal speed ratio | mm | 63 | |
| 2. | Main part | ||
| Shell | pcs | Q235-B | |
| Material | Q235-B or 20g | ||
| Tyre | pcs | ||
| Material | ZG310-570 | ||
| Hardness | >180 | ||
| Qty | 2Pcs | ||
| Girth gear | pcs | ||
| Material | ZG310-570 | ||
| Hardness | HB=200 | ||
| Qty | 1Pcs | ||
| Sealing at kiln inlet | Steel sealing | ||
| Qty | set | 1 | |
| Sealing at kiln outlet | Steel sealing | ||
| Qty | set | 1 | |
| Supporting roller part | |||
| Supporting roller | ZG340-640 | ||
| Hardness | HB>190 | ||
| Qty | Pcs | 2 | |
| Supporting roller shaft | |||
| Material | 45# | ||
| Hardness | HRC45-48 | ||
| Qty | 2Pcs | ||
| Thrust roller supporting unit | |||
| Qty | set | 1 | |
| Supporting roller | |||
| Supporting roller shaft | |||
| Thrust roller | |||
| Material | ZG340-640 | ||
| Hardness | HB>190 | ||
| Bearing base of thrust supporting roller | |||
| Qty | 1pcs | ||
| Oil pump station and control panel | |||
| Type | NC-14 | ||
| Qty | pcs | 1 | |
| Pinion part | |||
| Pinion | |||
| Material | 35SiMn | ||
| Hardness | HB>207-269 | ||
| Qty | pcs | 1 | |
| Pinion shaft | |||
| Material | 35CrMo | ||
| Hardness | HB>217-265 | ||
| Qty | pcs | 1 |
